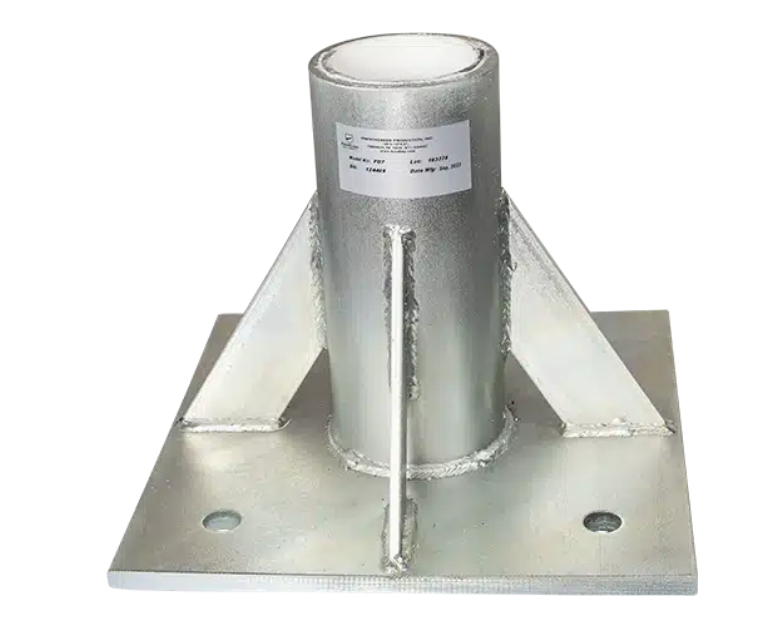

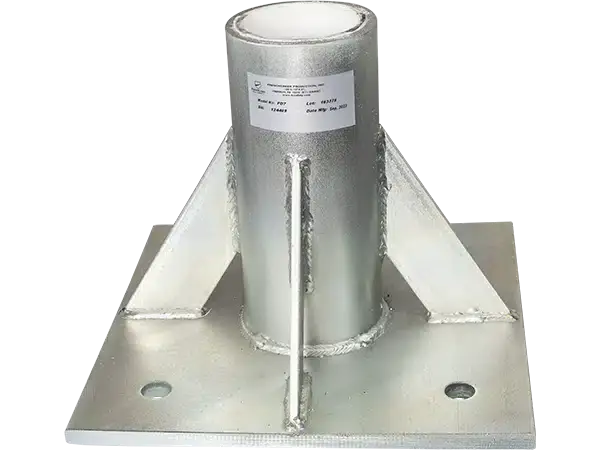

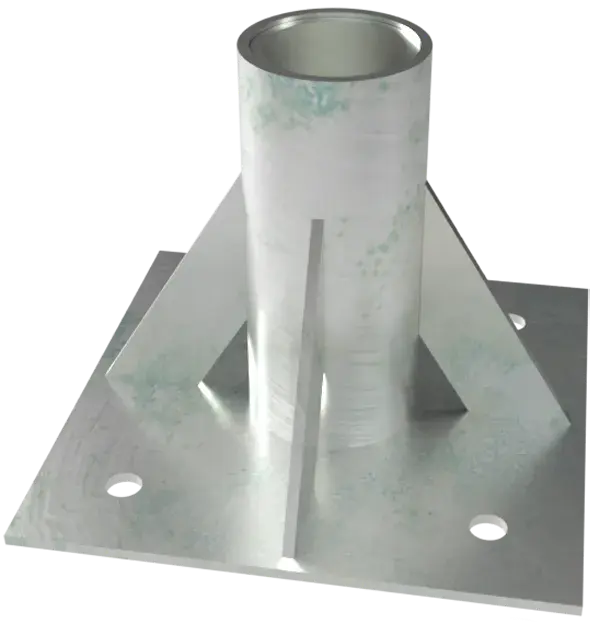

FrenchCreek PD7 Floor Mount Sleeve Davit Base

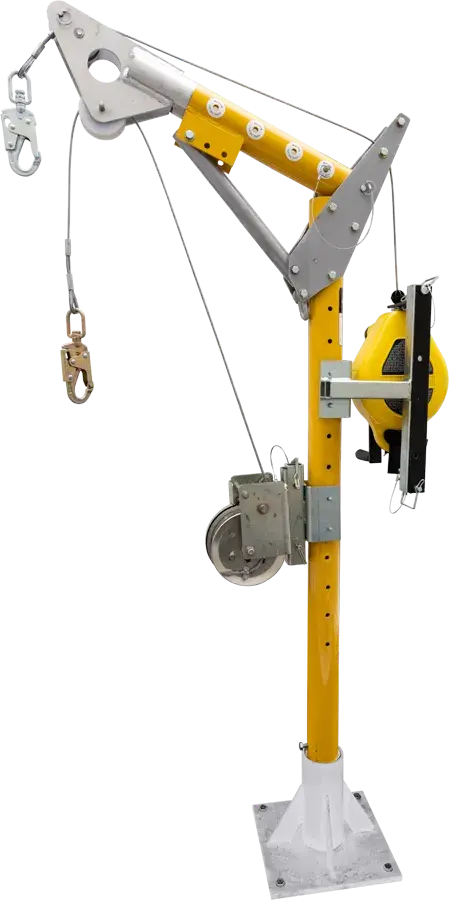

Floor-mount sleeve base for FrenchCreek's portable davit system, which raises, lowers, and suspends personnel in confined spaces. It's used for routine work or for rescues in vertical confined spaces such as vaults, manholes, and pump stations. The base bolts onto existing steel and concrete structures, making it well suited to locations accessed repeatedly. Its 9" deep sleeve with PVC insert allows 360° mast rotation. It's compatible with the PD1 davit mast assembly and available for quick ship.

Specifications

• Type: Floor-mount sleeve davit base
• Installation: Bolts onto existing steel and concrete structures
• Sleeve: 9" deep with PVC insert
• Rotation: 360° mast rotation
• Dimensions: 12" x 12" x 9.5"
• Compatible with: PD1 davit mast assembly
• Weight capacity: 450 lbs (205 kg) at a minimum 2:1 safety factor
• Hardware material: Zinc-plated carbon steel, PVC insert
• Weight: 32 lbs
• Availability: Quick Ship
• Standards: OSHA 1926.502 and 1910.66 when used in a complete system
