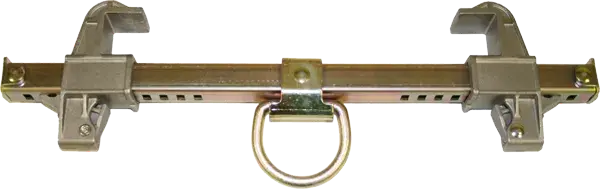

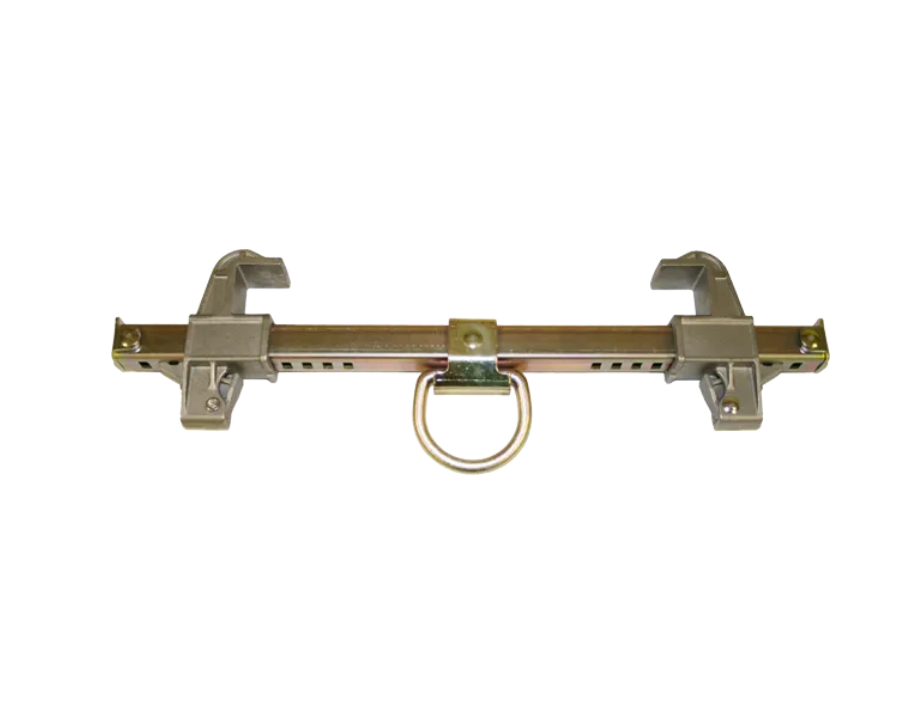

FrenchCreek 1700 Stainless Steel Sliding I-Beam Anchor

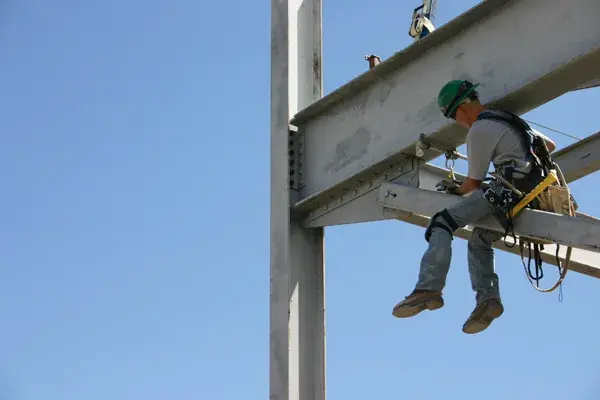

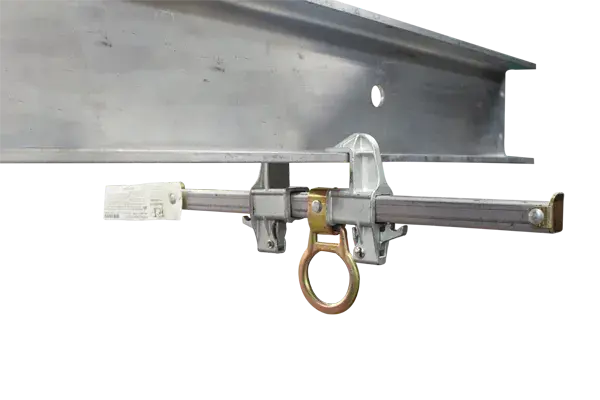

Light, smooth and easy to use, this adjustable sliding beam anchor connects to a steel I-beam for fall protection. Its center D-ring lets the anchor slide smoothly and trail the worker along the beam. It fits flanges from 3-1/2" to 12" wide and up to 1-1/4" thick, and works on the top or bottom of the beam. It installs quickly, is built from high-strength stainless steel with a high-strength alloy steel D-ring, and the hardware is plated to resist corrosion.

Specifications

• Type: Adjustable sliding I-beam anchor
• Fits: Flanges 3-1/2" to 12" wide, up to 1-1/4" thick
• Mounting: Top or bottom of I-beam
• Connection: Center D-ring for smooth sliding
• Attachment type: Wedge
• Use: Reusable
• Material: High-strength stainless steel; high-strength alloy steel D-ring
• Hardware: Plated, corrosion resistant
• Weight capacity: 130–310 lbs (ANSI); 400 lbs (OSHA)
• Weight: 6.2 lbs
• Standards: ANSI Z359.1, ANSI A10.32; OSHA 1926.502
