FrenchCreek 1124C 2 ft Concrete Anchor Strap

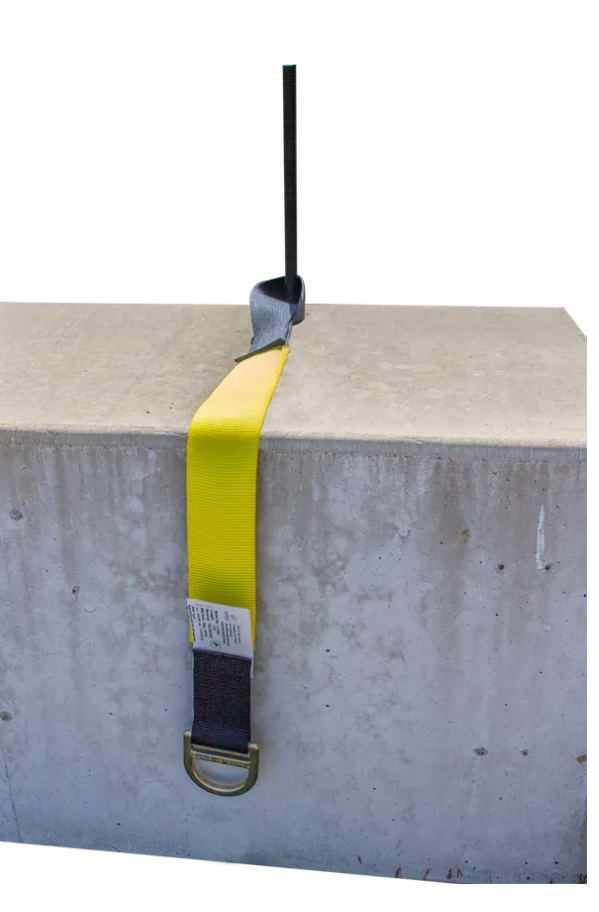

The FrenchCreek 1124C is a disposable, pour-in-place anchor strap designed to provide a temporary fall-protection anchorage point in new concrete construction. The strap is positioned before the concrete is poured, leaving the forged steel D-ring accessible for connection after the concrete has properly cured.

Its 1¾-inch abrasion-resistant polyester webbing and high-strength alloy-steel D-ring are rated at 5,000 lb. The lightweight, straightforward design supports fast installation and provides a practical anchorage solution for construction applications requiring an embedded temporary connection point.

Features

• Disposable pour-in-place concrete anchor

• Provides temporary anchorage in concrete

• Forged steel D-ring for connection

• 1¾-inch abrasion-resistant polyester webbing

• Components rated at 5,000 lb

• Quick and easy installation

• Plated, corrosion-resistant hardware

• Additional lengths available

Specifications

• Manufacturer Part Number: 1124C

• Product Type: Concrete anchor strap

• Attachment Type: Pour-in-place

• Length: 2 ft

• Webbing Width: 1¾ in

• Material: Abrasion-resistant polyester webbing and high-strength alloy steel

• Rated Strength: 5,000 lb

• Weight Capacity: 130–310 lb under ANSI requirements; up to 400 lb under OSHA requirements

• Product Weight: 0.4 lb

• Standard: ANSI Z359.1

• Compliance: Meets applicable OSHA requirements

This is a disposable anchorage connector and should not be reused after removal or fall loading. Installation and concrete requirements must follow the manufacturer’s instructions and the project engineer’s approved anchorage design.
