Stein 5:1 Hauler Kit

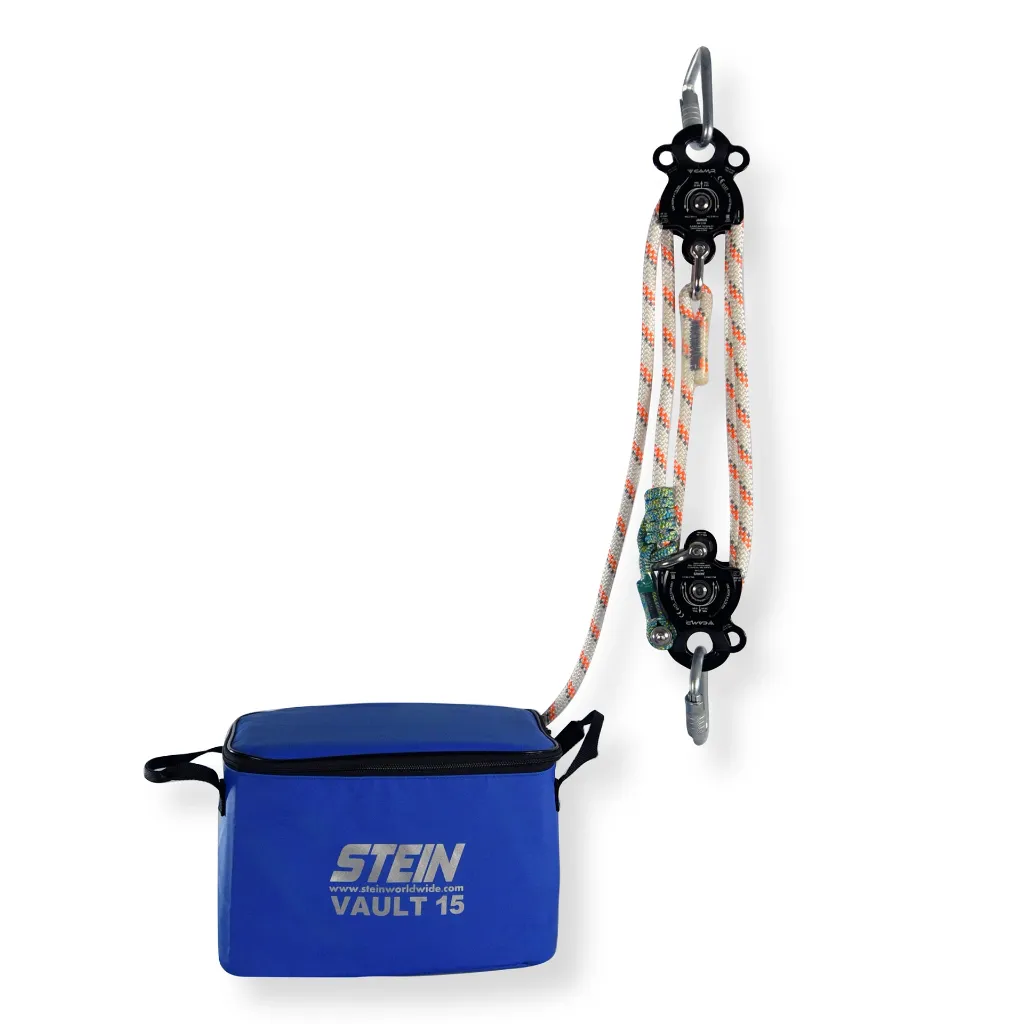

The Stein 5:1 Hauler Kit is a fully assembled mechanical advantage hauling system designed for professional arborist rigging applications. Also known as a block-and-tackle or fiddle block system, the kit provides a 5:1 mechanical advantage configuration for controlled hauling, tensioning, and load management.

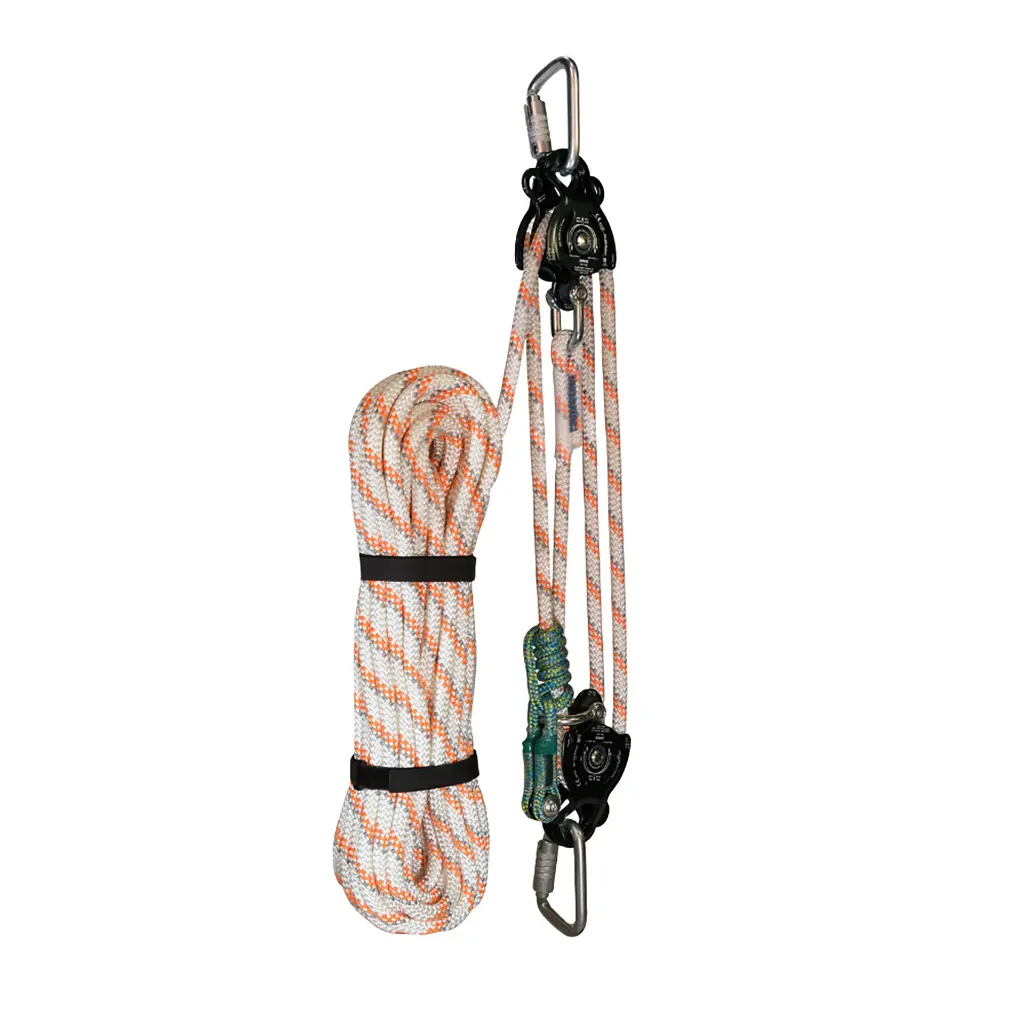

Supplied fully assembled and ready for use, the system includes 25 meters of spliced Stein OMEGA 12 mm rigging line, two double pulleys, and a locking mechanism utilizing a Stein Copious sling tied in a Michigan hitch.
Each double pulley has a manufacturer-stated rating of 50 kN, while the Stein OMEGA rigging line has a stated average breaking strength of 4,300 kg.
The complete system is supplied in a Stein VAULT 15 rope bag for organized storage, transportation, and protection of the equipment between operations.
Key Features
Complete 5:1 mechanical advantage hauling system.
Block-and-tackle configuration, also known as a fiddle block.
Supplied fully assembled and ready for use.
Includes 25 meters of spliced Stein OMEGA 12 mm rigging line.
Stein OMEGA rope has a manufacturer-stated average breaking strength of 4,300 kg.
Two double pulleys, each rated at 50 kN.
Locking mechanism uses a Stein Copious sling tied in a Michigan hitch.
Includes a Stein VAULT 15 rope bag for storage and transportation.
Designed for professional arborist hauling and rigging applications.
Technical Specifications
Specification | Details |
|---|---|
Brand | Stein |
Manufacturer Part Number | 40369 |
Product Type | Mechanical Advantage Hauler Kit |
Mechanical Advantage | 5:1 |
System Configuration | Block and Tackle / Fiddle Block |
Rope | Stein OMEGA Rigging Line |
Rope Diameter | 12 mm |
Rope Length | 25 m (approximately 82 ft) |
Rope Construction | Spliced |
Average Rope Breaking Strength | 4,300 kg (manufacturer stated) |
Pulley Configuration | Two Double Pulleys |
Individual Pulley Rating | 50 kN |
Locking Mechanism | Stein Copious Sling with Michigan Hitch |
Storage Bag | Stein VAULT 15 |
Assembly | Supplied Fully Assembled |
Primary Application | Arborist Hauling and Rigging |
Included Components
1 Stein 5:1 Hauler Assembly
25 m Stein OMEGA 12 mm Spliced Rigging Line
2 Double Pulleys, 50 kN Rating Each
Stein Copious Sling Locking Mechanism
1 Stein VAULT 15 Rope Bag
Important Safety Information
The manufacturer's stated rope breaking strength and individual pulley ratings do not establish the working load limit of the complete hauling system.
Use the equipment only within the manufacturer's approved operating limits and intended applications. Inspect all ropes, pulleys, connectors, and locking components before use.
The system should not be represented as approved for personnel lifting, fall protection, or rescue operations without manufacturer documentation specifically authorizing those applications.
