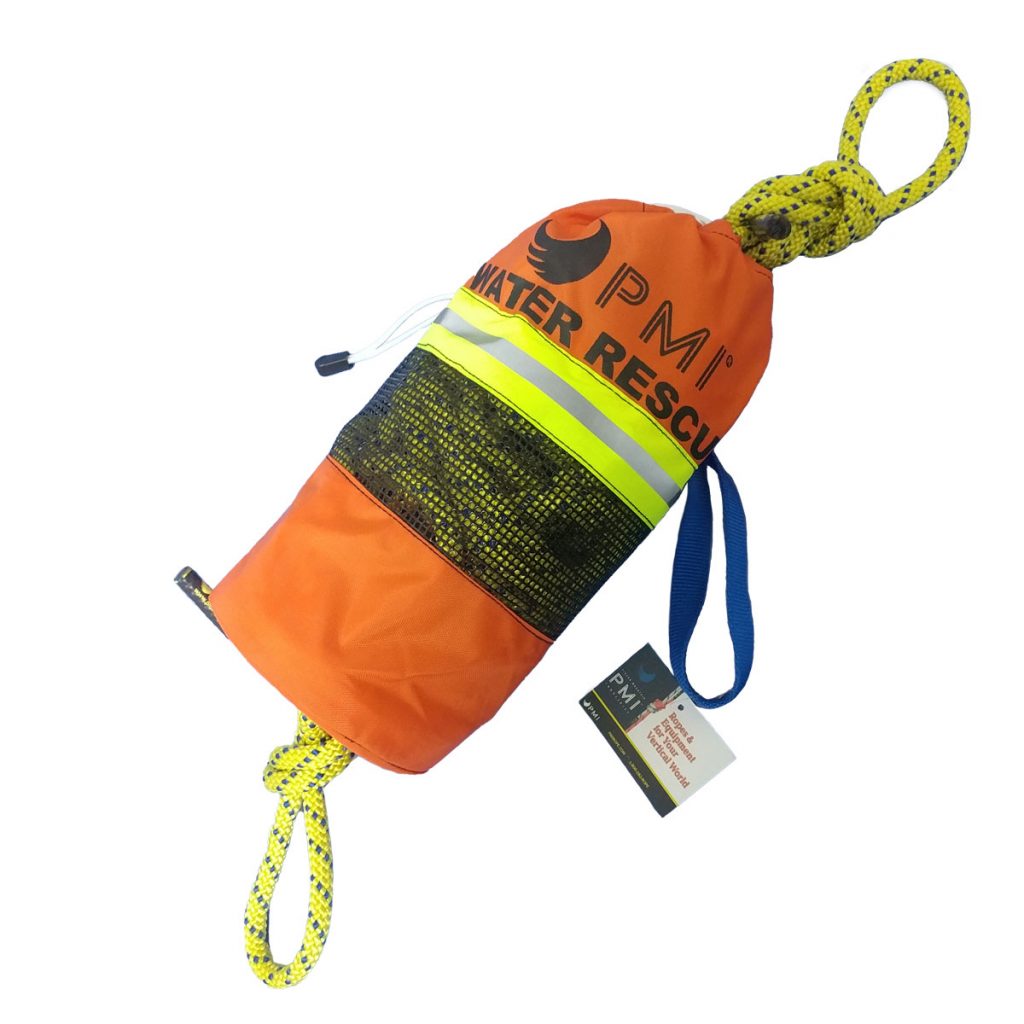

PMI® H2-Throw Bag with Water Rescue Rope
The PMI H2-Throw Bag is a ready-to-deploy water rescue rope system combining a lightweight nylon throw bag with PMI Water Rescue Rope. Designed for rescue operations that require rapid deployment and high visibility, the system is available with either 7 mm or 10 mm rope in 50 ft. (15 m) and 75 ft. (23 m) configurations.
The H2-Throw Bag incorporates durable mesh panels that allow water to drain after use and a bright reflective band around the center for increased visibility. The bag includes a flotation disc, and the supplied rope has pre-tied loop terminations. Each system arrives rigged and ready for deployment.
Manufacturer: PMI
Product: H2-Throw Bag with Water Rescue Rope
Bag Material: Lightweight nylon with mesh panels
Rope: PMI Water Rescue Rope
Available Rope Diameters: 7 mm; 10 mm
Available Rope Lengths: 50 ft. (15 m); 75 ft. (23 m)
Rope Terminations: Pre-tied loops
Flotation Disc: Yes
Reflective Band: Yes
Drainage: Mesh panels
Configuration: Rigged and ready for deployment
Available Configurations
| Manufacturer Part Number | Rope Diameter | Rope Length | MBS |
|---|---|---|---|
| KT36023 | 10 mm | 50 ft. / 15 m | 16 kN / 3,597 lbf |
| KT36019 | 10 mm | 75 ft. / 23 m | 16 kN / 3,597 lbf |
| KT36021 | 7 mm | 75 ft. / 23 m | 8 kN / 1,798 lbf |
PMI's current product page also presents 7 mm and 10 mm diameter choices and 50 ft. and 75 ft. length choices. The supplied dealer price sheet, however, lists the three specific configurations above, so I would only create those three Vertex variants unless PMI adds the fourth combination to the price list.
Performance Ratings and Specifications
| Performance | Rating |
|---|---|
| 10 mm Rope MBS | 16 kN / 3,597 lbf |
| 7 mm Rope MBS | 8 kN / 1,798 lbf |
-
Rope Diameter
-
Length
