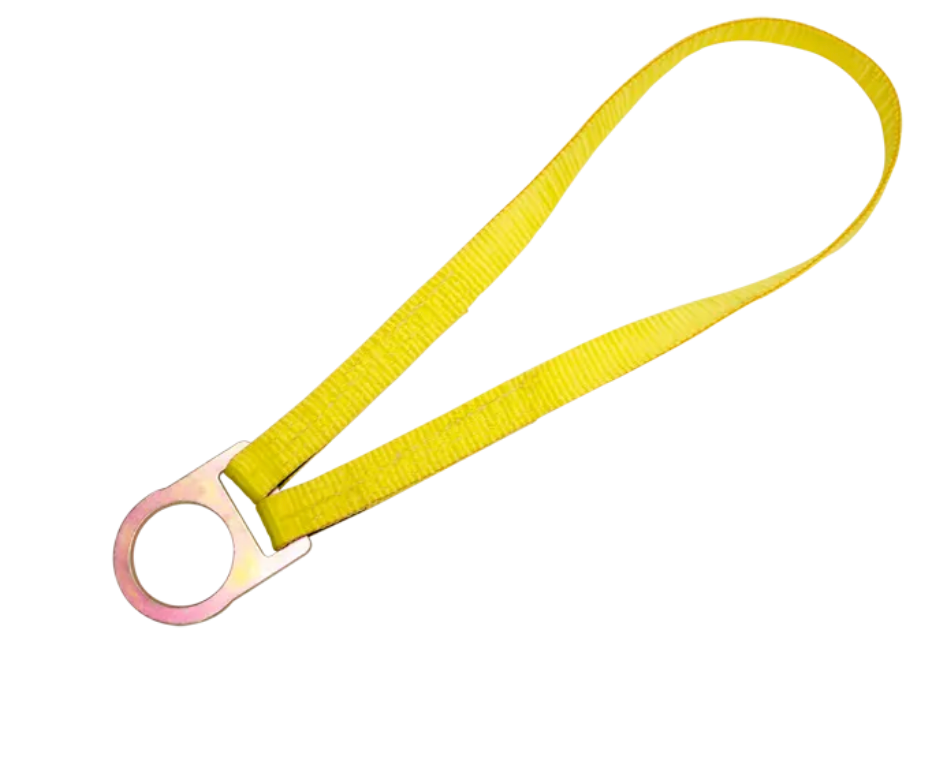

FrenchCreek 1122HD Scaffold Choker Tie-Off Adaptor

The FrenchCreek 1122HD is a compact, choker-style anchorage connector designed to create a portable fall-protection attachment point around compatible structural pipe and steel members. Its 22-inch length and single D-ring configuration provide a practical connection solution where a fixed anchor is unavailable.

Constructed from 1-inch, 9,800 lb-rated polyester webbing with high-strength alloy-steel hardware, the adaptor combines durability with fast, tool-free installation. Its portable and reusable design accommodates approved anchor structures up to 3 inches in diameter.

Features

• Choker-style fall-protection anchorage connector

• Designed for compatible structural pipe and steel members

• Fits anchor structures up to 3 inches in diameter

• 1-inch polyester webbing rated at 9,800 lb

• Single high-strength alloy-steel D-ring

• Plated, corrosion-resistant hardware

• Quick and easy attachment

• Portable and reusable construction

• Compact 22-inch length

Specifications

• Manufacturer Part Number: 1122HD

• Product Type: Tie-off adaptor

• Configuration: Single D-ring scaffold/pipe choker

• Attachment Type: Choke loop

• Length: 22 in

• Maximum Anchor Diameter: 3 in

• Webbing Width: 1 in

• Webbing Rating: 9,800 lb

• Material: Polyester webbing and high-strength alloy steel

• Weight Capacity: 130–310 lb under ANSI requirements; up to 400 lb under OSHA requirements

• Product Weight: 2 lb

• Standard: ANSI Z359.1

• Compliance: Meets applicable OSHA requirements

Use only with an approved anchorage capable of supporting the required fall-protection loads. Inspect the webbing and hardware before every use and follow all manufacturer instructions.
