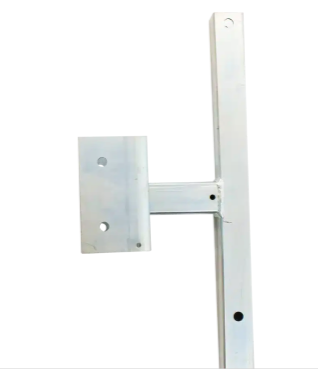

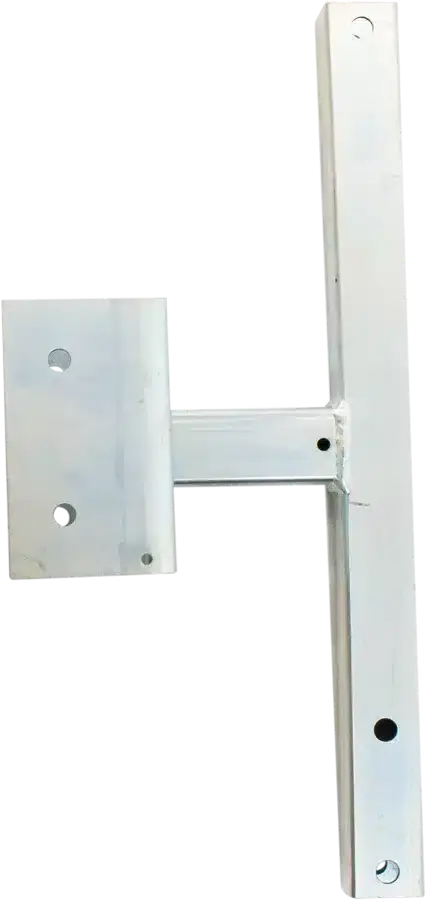

FrenchCreek PD3 Mounting Bracket for R50G Rescue SRL

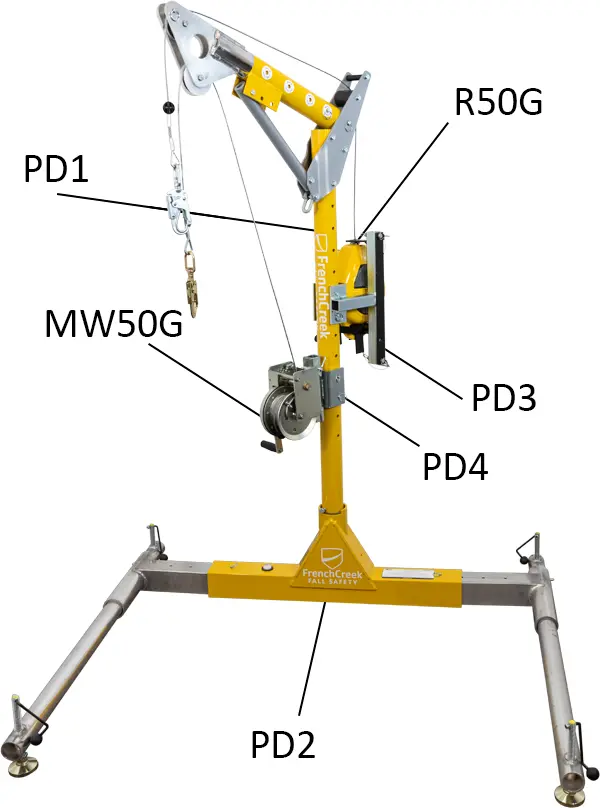

The FrenchCreek PD3 Mounting Bracket is designed specifically to attach the FrenchCreek R50G Rescue SRL to the PD1 Davit Mast Assembly as part of the FrenchCreek Portable Davit System.
Constructed from zinc-plated alloy steel, the PD3 provides the mounting interface between the R50G 3-way rescue/retrieval SRL and the PD1 davit mast. Locking pins provide straightforward installation and removal, allowing the rescue unit to be configured with the portable davit system as required for confined-space entry, retrieval, and rescue operations.
The PD3 is an essential component when configuring a FrenchCreek PD1 davit mast with an R50G Rescue SRL.
Key Features
• Mounting bracket for FrenchCreek R50G Rescue SRL
• Designed for FrenchCreek PD1 Davit Mast Assembly
• Locking-pin installation
• Zinc-plated alloy-steel construction
• Component of the FrenchCreek Portable Davit System
• Suitable for confined-space entry, retrieval, and rescue system configurations
• FrenchCreek Quick Ship item
Important: The PD3 is the mounting bracket only. The PD1 Davit Mast Assembly and R50G Rescue SRL are sold separately unless included as part of a complete FrenchCreek davit system.
Specifications
| Specification | PD3 |
|---|---|
| Manufacturer | FrenchCreek Fall Safety |
| Model | PD3 |
| Product Type | Rescue SRL mounting bracket |
| Compatible Mast | PD1 Davit Mast Assembly |
| Compatible Rescue Device | R50G Rescue SRL |
| Installation | Locking pins |
| Material | Zinc-plated alloy steel |
| Current Manufacturer-Listed Weight | 15 lb. |
| Availability | Quick Ship |
Standards and Compliance
| Standard | Manufacturer Listing |
|---|---|
| OSHA 1926.502 | Yes |
| OSHA 1910.66 | Yes |
