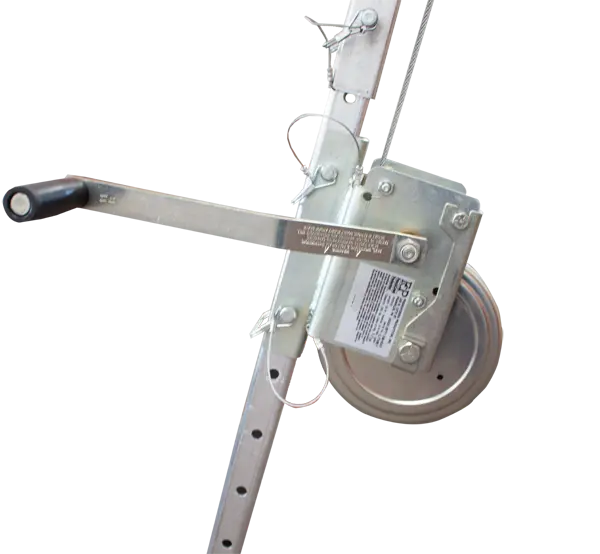

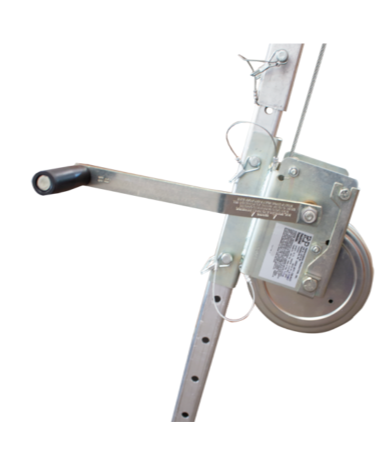

FrenchCreek MW50G Material Work Winch – 50 ft. Galvanized Wire Rope

The FrenchCreek MW50G Material Work Winch provides controlled raising and lowering capability for confined-space entry and work applications. Designed for use with compatible FrenchCreek tripod and portable davit systems, the MW50G incorporates a friction brake that prevents the winch from free-wheeling while under load.

The MW50G uses 50 feet of 3/16-inch galvanized steel wire rope and features a rugged steel frame and drum. The winch includes a swivel snap hook, pulley, and carabiner for integration with compatible FrenchCreek confined-space systems.

When used with the FrenchCreek Portable Davit System, the MW50G mounts to the PD1 Davit Mast Assembly using the PD4 Mounting Bracket. It can also be incorporated into FrenchCreek TP7 and TP9 tripod configurations.

Key Features

• 50-ft. material work winch

• Provides controlled raising and lowering capability

• Friction brake helps prevent free-wheeling under load

• 50 ft. of 3/16-in. galvanized steel wire rope

• Rugged steel frame and drum

• Swivel snap hook

• Includes pulley and carabiner

• Compatible with FrenchCreek tripod and portable davit systems

• Mounts to PD1 Davit Mast Assembly using PD4 Mounting Bracket

• 350-lb. manufacturer-listed weight capacity

• FrenchCreek Quick Ship item

Important: The MW50G is a work winch and is not a self-retracting lifeline. For fall-arrest and 3-way rescue/retrieval capability, see the FrenchCreek R50G Rescue SRL.
