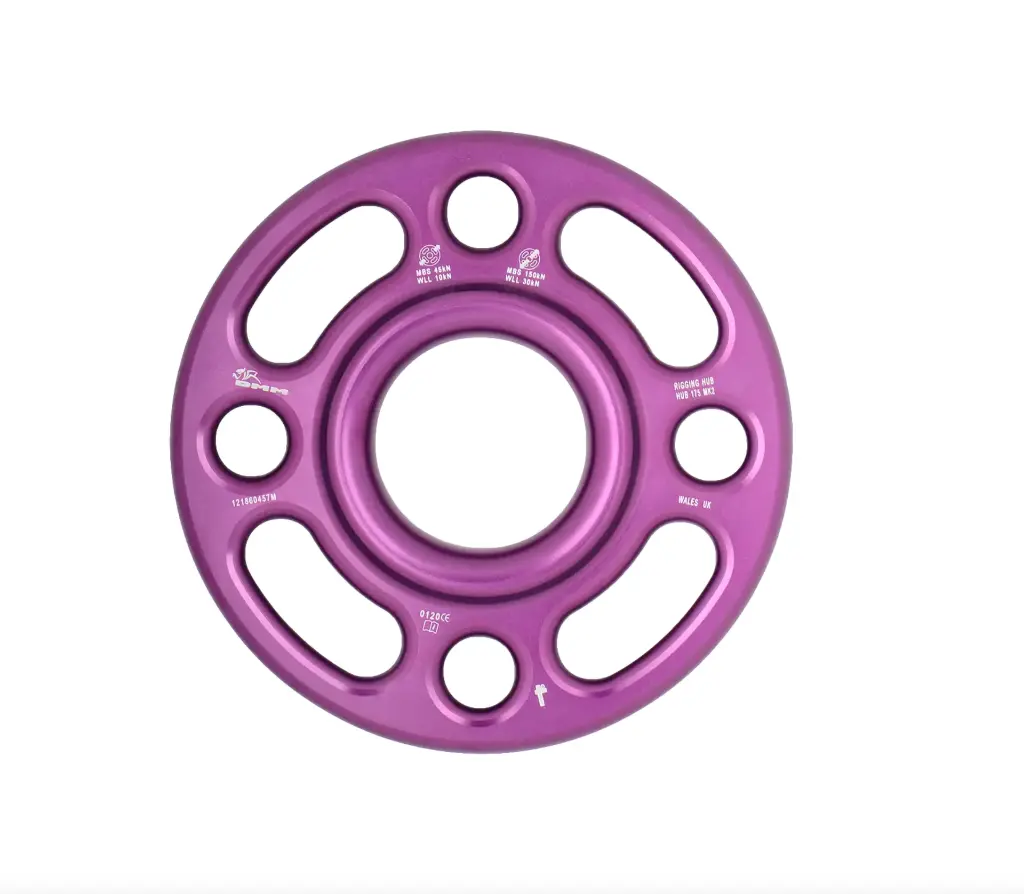

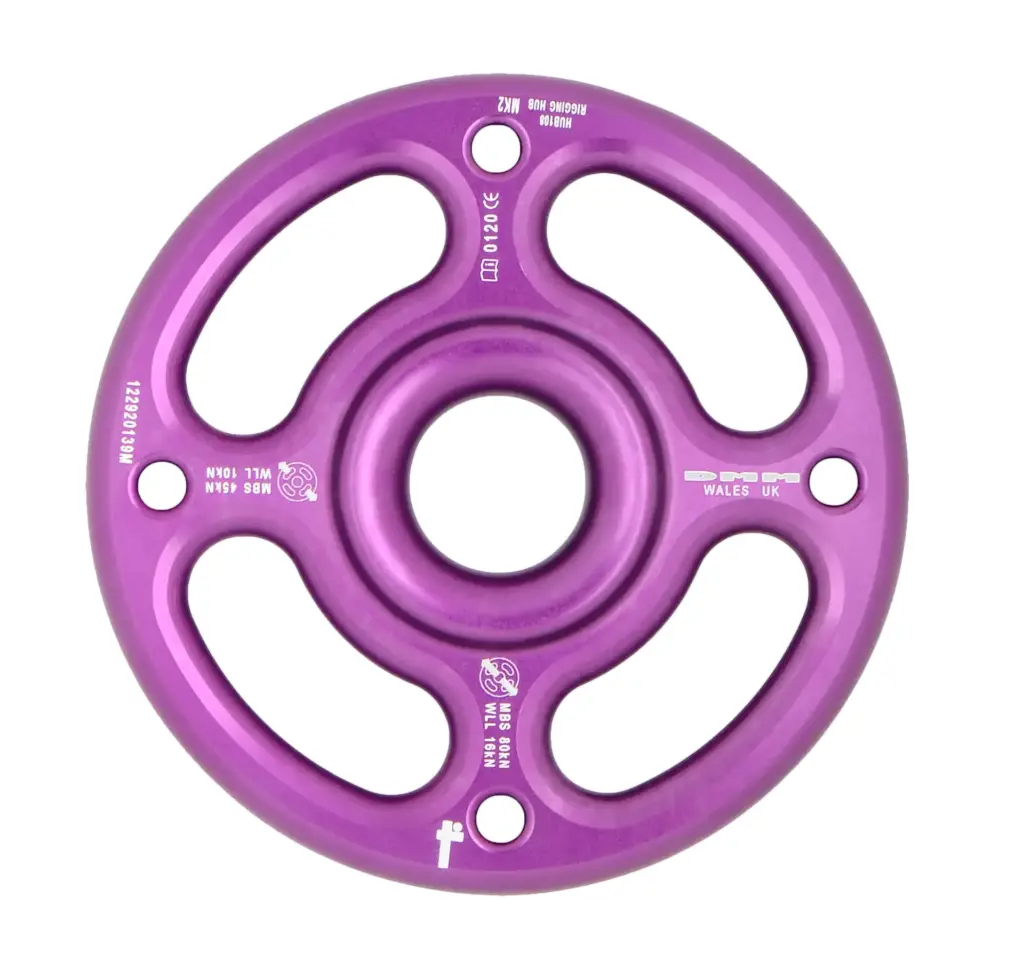

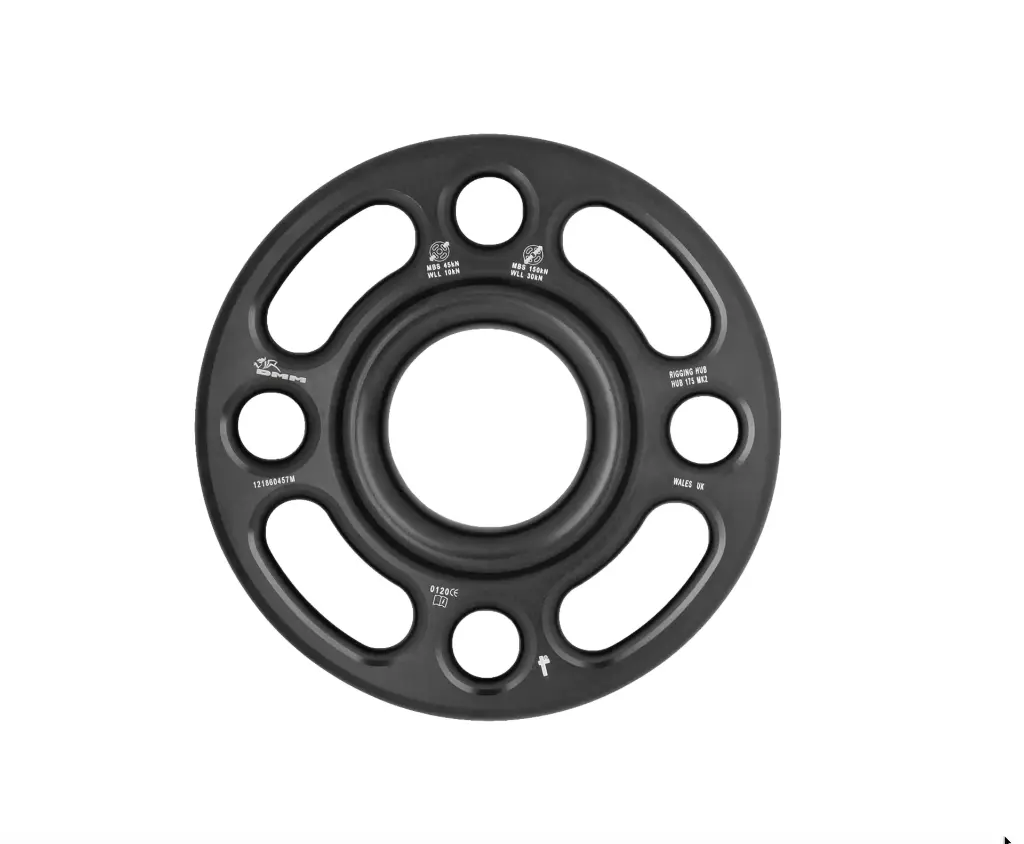

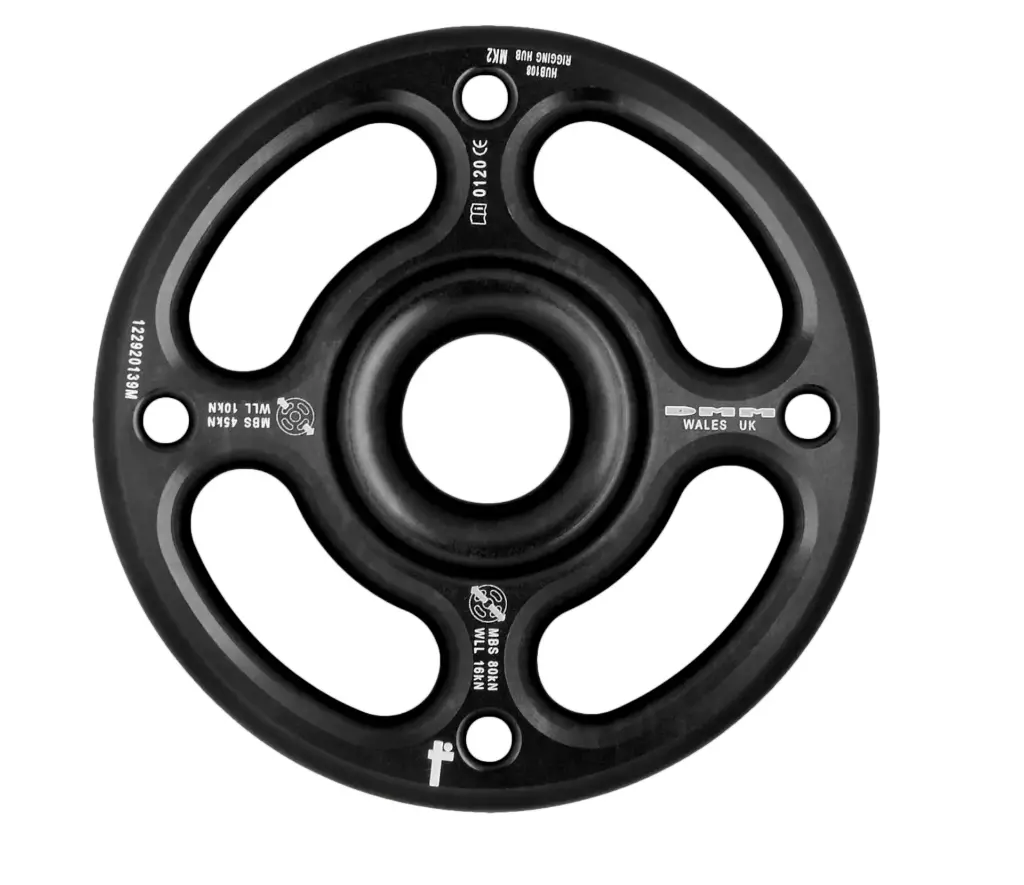

DMM Rigging Hub

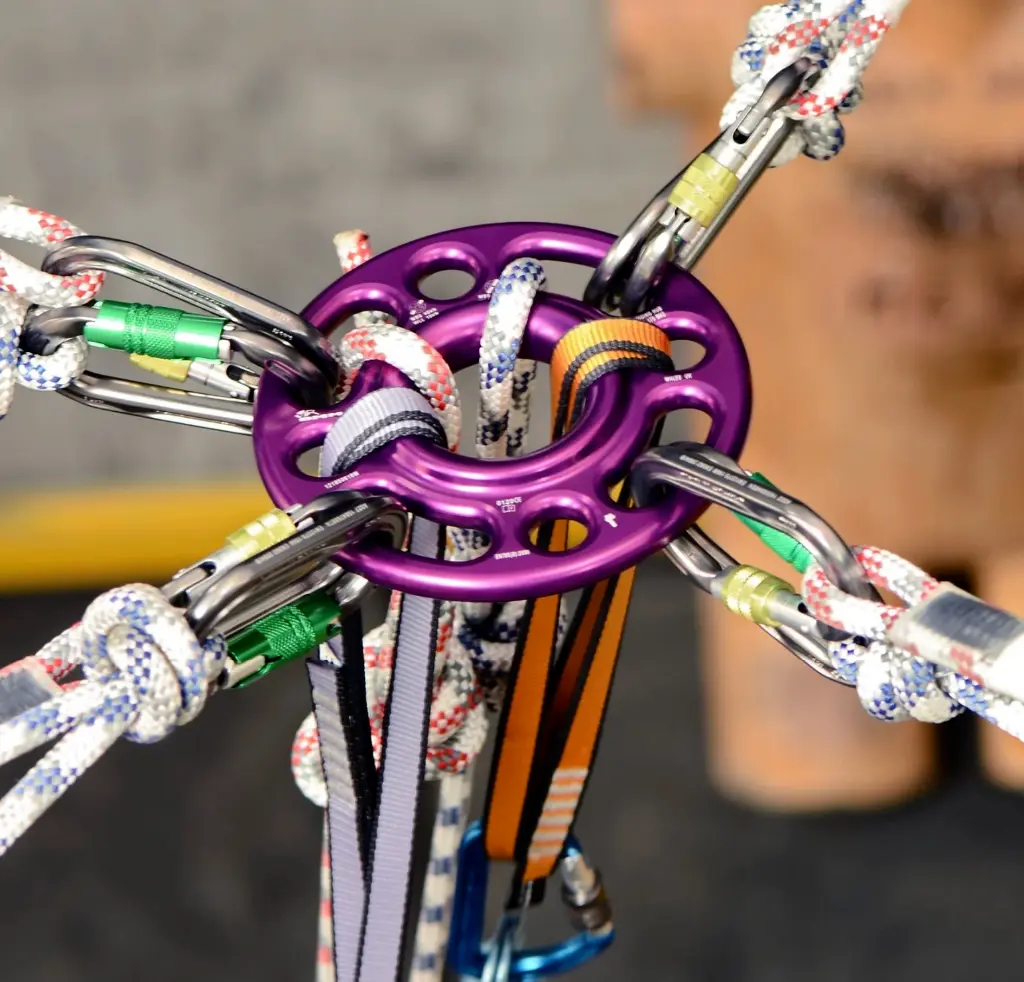

The DMM Rigging Hub is a high-strength centralized rigging plate designed to bring complex three-dimensional rigging systems together at a single anchor point. Developed for professional tree care, rope access, rescue, and technical rigging, the Hub offers multiple connection options while staying compact and lightweight.
Smooth, radiused connection surfaces allow ropes and textile components to be connected directly to the Hub, including running ropes, girth-hitched slings, and tied-in prusiks. Connection points are also designed to accommodate webbing and opposed connectors without unnecessarily complicating the rigging system.
The large central opening accommodates a running rope and supports true 3D rigging configurations. Multiple Rigging Hubs can also be incorporated into systems to create targeted lifting or edge-management anchor arrangements. In appropriate configurations, this can provide a lightweight alternative to a tripod for applications such as positioning a lifting point above a manhole, cave entrance, or similar opening.
CNC-machined from high-grade aluminum alloy, the Rigging Hub combines high strength with relatively low weight for demanding field operations. It is available in Small and Large sizes and in Purple or Matt Grey finishes.
Key Features
- Centralized anchor point for complex 3D rigging
- Multiple textile-friendly connection points
- Suitable for direct connection of rope and webbing
- Accommodates opposed connectors
- Large central opening accommodates a running rope
- Can be incorporated into multi-anchor edge-management and lifting systems
- CNC-machined from high-grade aluminum alloy
- Designed for professional rescue and rigging applications
- Available in Small and Large sizes
- Available in Purple and Matt Grey
Technical Specifications
| Model | MBS | WLL | Diameter | Weight |
|---|---|---|---|---|
| Small | 80/45 kN | 16/9 kN | 119 mm | 260 g |
| Large | 150/45 kN | 30/9 kN | 169 mm | 550 g |
Certification
RFU 11.114 V1
Recommended Applications
Professional Arboriculture; Technical Rigging; Rope Access; Technical Rescue; USAR; Edge Management; Confined Space Rescue; Targeted Lifting Systems
Please allow 2–3 weeks for delivery.
-
size
-
Product Colors - Matt Grey
-
CE - EU PPE Regulation 2016/425
