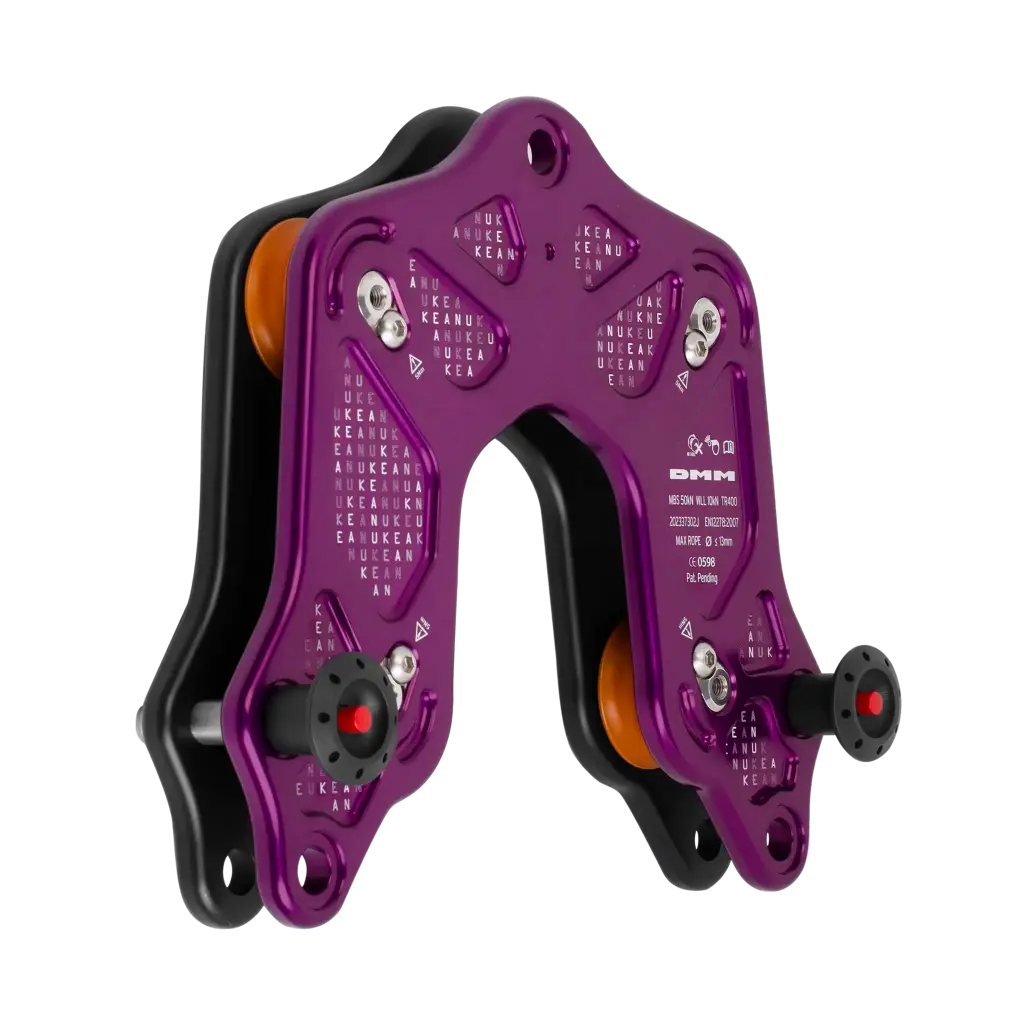

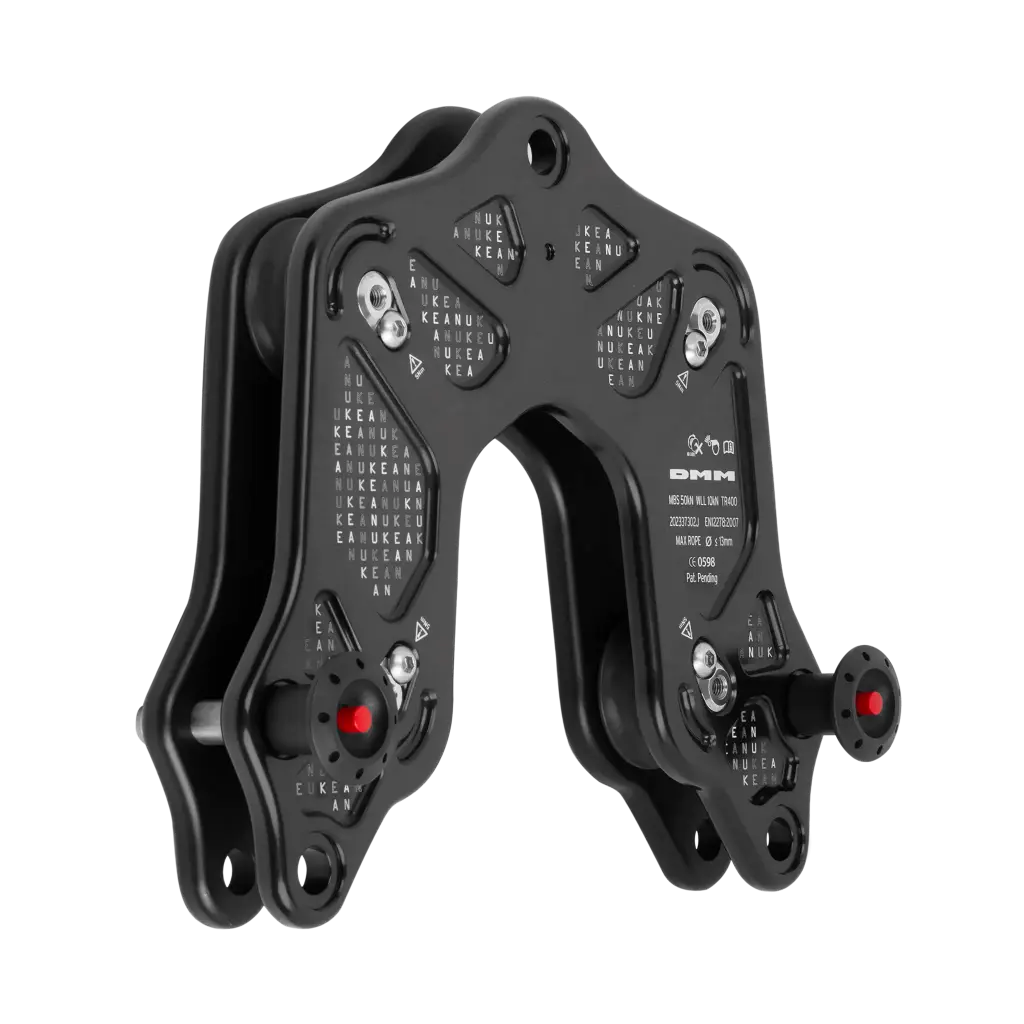

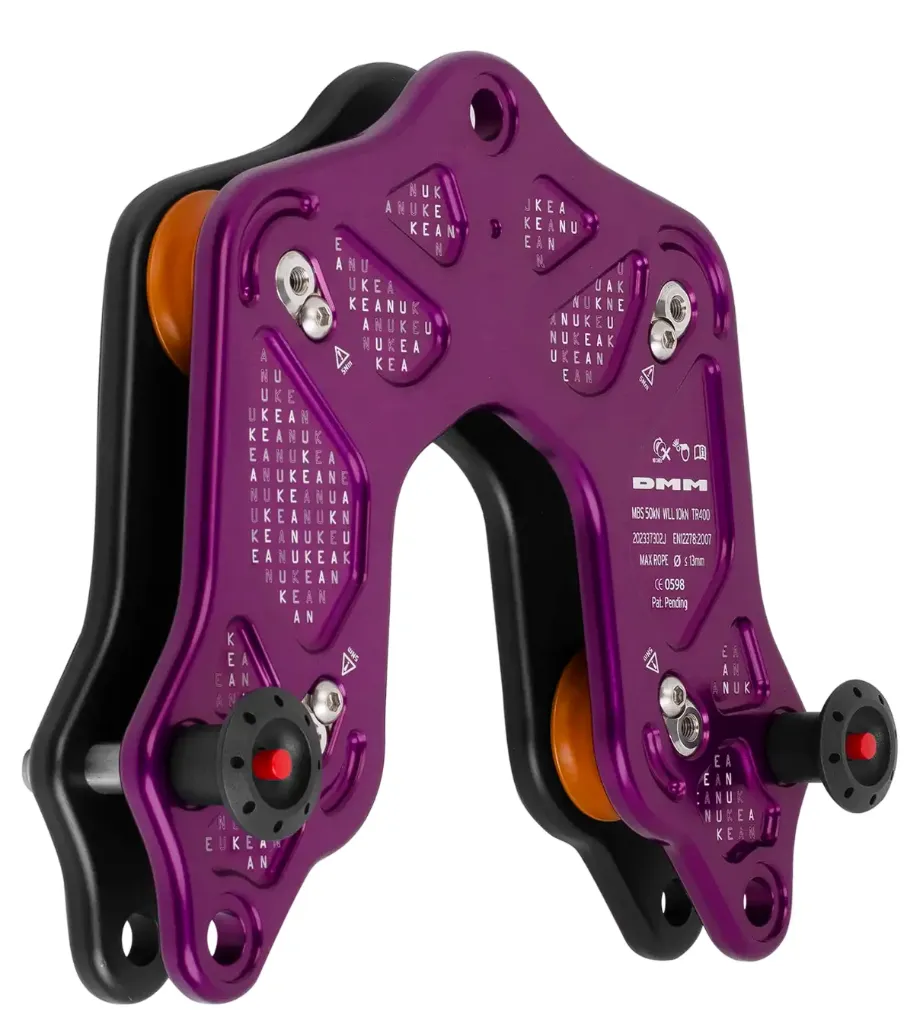

DMM Keanu Highline Rigging & Rescue Trolley

The DMM Keanu is a compact, purpose-built trolley designed for highline rigging and rescue systems where precise load movement, efficiency, and streamlined system configuration are critical. By integrating multiple sheaves within fixed side plates, the Keanu replaces a more complex assembly of individual pulleys and connectors with a compact, preconfigured system.

The integrated design reduces the size and weight of traditional multi-component highline reeves while helping loads move laterally more efficiently. Internal clearance allows the pulley to retreat within the trolley profile, and all sheaves run on ball bearings for smooth operation.

The Keanu can be configured for series redundancy by adding pulleys and lines through its quick-release locking pins. For parallel redundancy, two Keanu trolleys can be connected using the separately available DMM Joining Kit. All components are replaceable, allowing end users to maintain the system rather than replacing the complete trolley.

Key Features

• Preconfigured for efficient highline reeves
• Multiple integrated sheaves within fixed side plates
• Ball-bearing sheaves for efficient operation
• Designed for precise and efficient lateral load movement
• Quick connection for control and backup lines
• Quick conversion to series redundancy
• Two Keanu trolleys can be combined for parallel redundancy using the separately available Joining Kit
• User-replaceable components
• CNC-machined construction
• Compatible with DMM Gyro PUL230 pulley
• Compatible with DMM Large Bat Plate RRG-L-GD

Available Configurations

Technical Specifications

MBS: 50 kN

WLL: 10 kN

Dimensions: 220 × 250 × 40 mm

Weight: 1,698 g

Certification: EN 12278:2007

Recommended Applications

Highline Rescue; Technical Rescue; Arborist Rigging; Highline Rigging; Load Movement Systems; Theatre Rigging

DMM Keanu Product Page

Please allow 2–3 weeks for delivery.
