3M DBI-SALA Confined Space Aluminum Tripod with Winch 8301085 – 9 ft., 120 ft. Stainless-Steel Cable

The 3M DBI-SALA 8301085 Confined Space Aluminum Tripod with Winch is a complete portable entry and retrieval system designed for confined-space access, personnel retrieval, rescue, and emergency evacuation. The system combines a 9-foot aluminum tripod with a manually operated Salalift II winch and 120 feet of stainless-steel cable, providing an integrated solution for vertical confined-space operations.

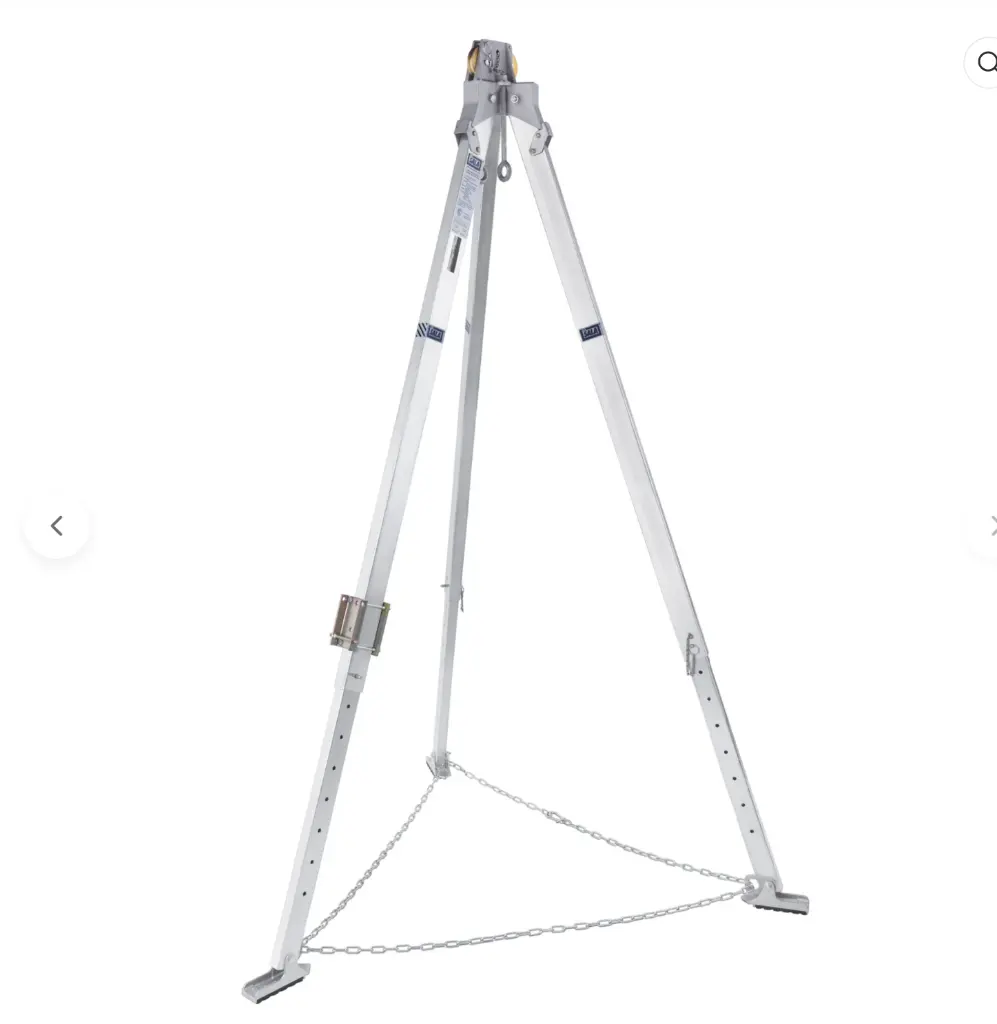

The lightweight aluminum tripod incorporates telescoping adjustable locking legs, a built-in pulley system, padded feet, and a leg-support safety chain for stable positioning over manholes, tanks, vaults, pits, and other vertical-entry locations. The system can be set up by a single worker and transported between work locations.

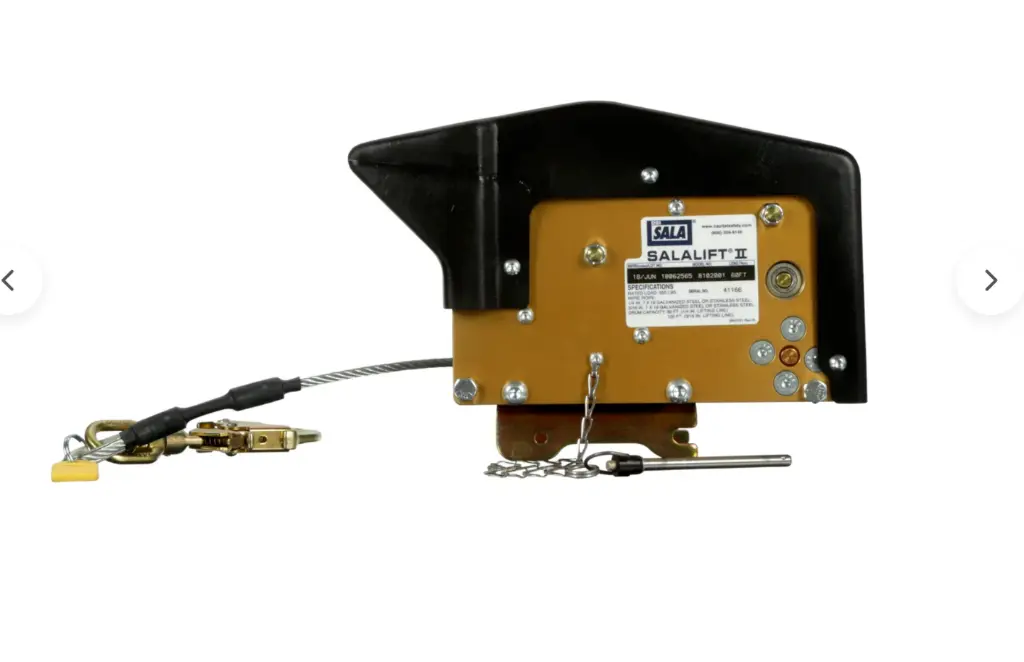

The included manually operated winch provides a 6:1 mechanical advantage and incorporates a free-wheel mode for movement within the confined space. The system also includes a three-way emergency retrieval capability, provisions for a secondary leg-mounted mechanical device, and quick-connect mounting brackets for compatible winches and self-retracting lifelines.

The tripod incorporates an eyebolt with a 1,000 lb. material-handling capacity and a mechanical-device mounting bracket rated for material handling up to 620 lb. The 120-foot stainless-steel lifeline provides extended reach for deeper vertical-entry applications.

Overall Height: 9 ft. / 2.7 m.

Lifeline Length: 120 ft. / 36.6 m.

Lifeline Material: Stainless-steel cable.

Tripod Material: Aluminum.

Winch: Manually operated Salalift II.

Winch Mechanical Advantage: 6:1.

Ideal for confined-space entry, confined-space rescue, personnel retrieval, utilities, wastewater, public works, industrial maintenance, construction, transportation, manufacturing, and emergency response.

Certifications and Compliance: Meets or exceeds OSHA 1910.140 and OSHA 1926.502 requirements as identified for this configuration.

Sold as a complete tripod and winch system.

Please allow 2–3 weeks for delivery.
