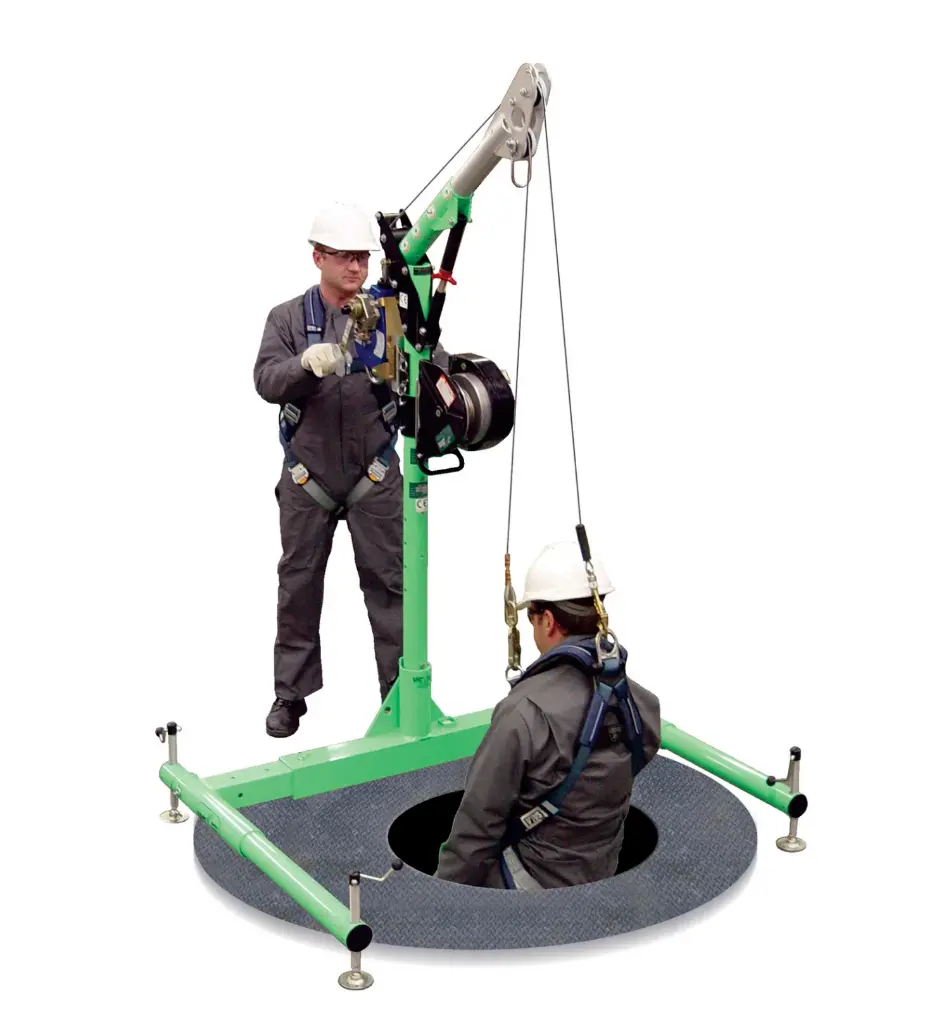

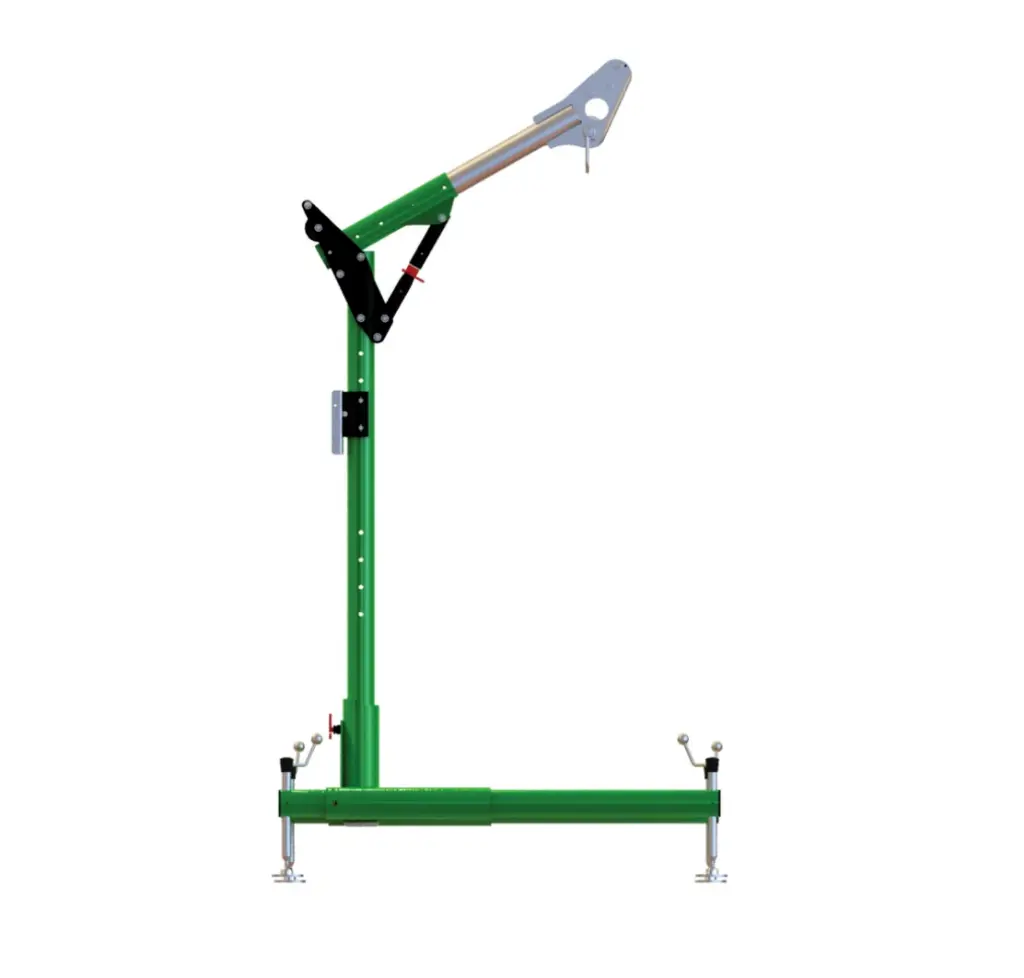

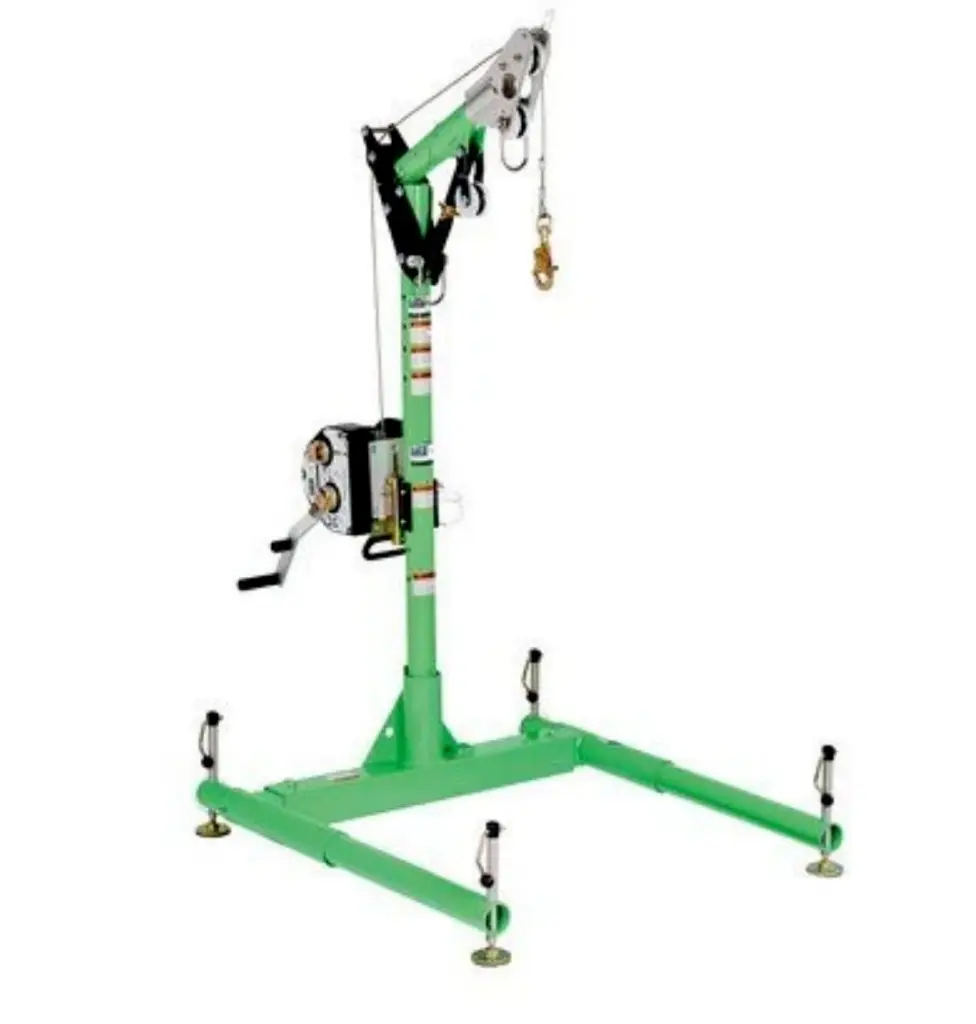

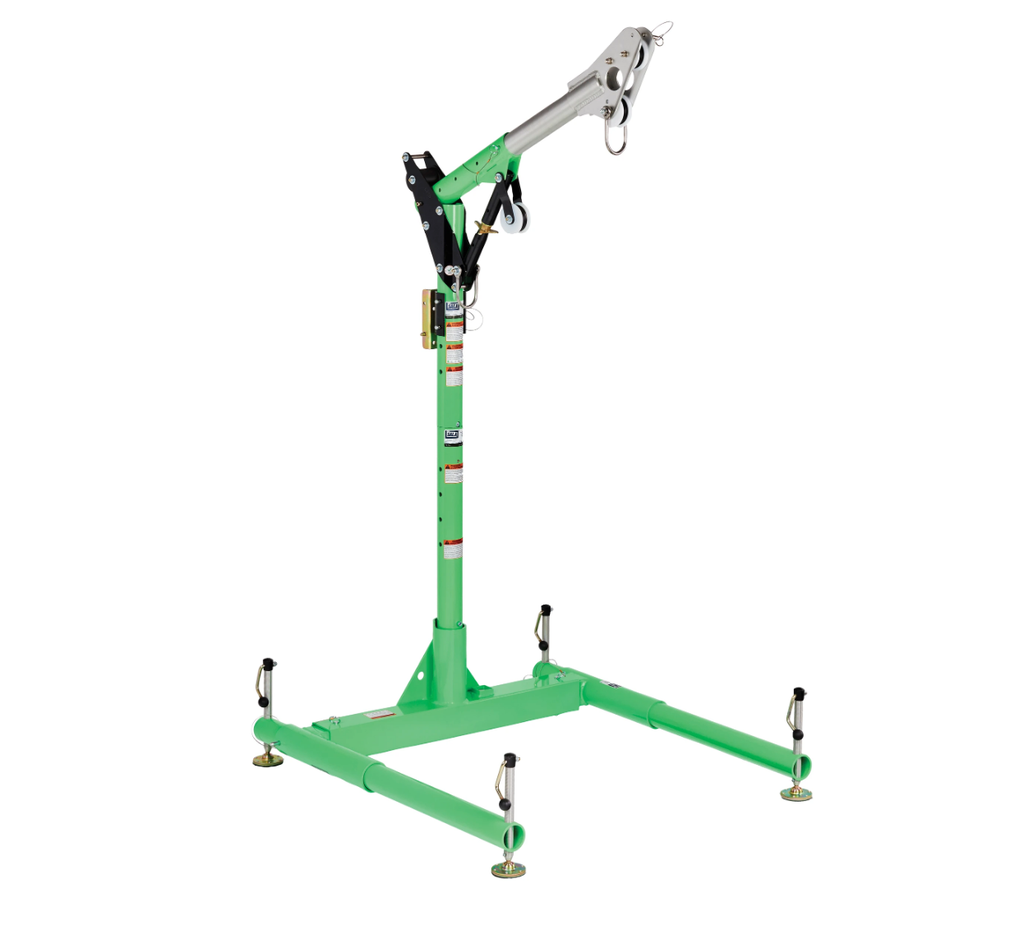

The 3M DBI-SALA Confined Space Long Reach Davit System is a five-piece, high-capacity portable davit system designed for confined-space entry, retrieval, fall arrest, rescue, and work-support applications. Its modular aluminum construction provides a substantial overhead anchorage system while allowing the components to be separated for transport, setup, and storage.

The long-reach configuration provides an adjustable mast and base for positioning over manholes, tanks, pits, vaults, and other difficult-to-access confined spaces. The davit pivots to improve rescue positioning and can be adjusted to accommodate overhead-clearance restrictions. An integrated leveling system allows the base to be leveled independently when working on uneven surfaces.

Features include an integrated 5,000 lb. (22 kN) mast anchorage point, fall-arrest capability throughout all davit offset positions, adjustable mast height and base width, high-strength aluminum construction, adjustable foot-leveling system, built-in level indicator, and tool-free setup and dismantling. Compatible authorized self-retracting lifelines and winches can be mounted to the system for complete confined-space entry and retrieval configurations.

Maximum Height: 110.4 in. / 280.5 cm.

Minimum Height: 87.5 in. / 222.3 cm.

System Weight: Approximately 81.6 kg / 180 lb.

Mast Rotation: 204 degrees.

Capacity: Fall arrest for up to two users, maximum 140 kg each; rescue for one user, maximum 140 kg; material load capacity up to 205 kg.

Certifications and Standards: CE EN 795:2012 Type B; EN 1496:2006 Class B; CEN/TS 16415:2013 Type B; AS/NZS 5532:2013.

Ideal for confined-space entry, confined-space rescue, fall arrest, personnel retrieval, utilities, wastewater, public works, industrial maintenance, construction, mining, transportation, manufacturing, and emergency response.

Sold as the complete 5-piece Long Reach Davit System. Winches, self-retracting lifelines, harnesses, and other retrieval components are sold separately unless specifically stated otherwise.

Please allow 2–3 weeks for delivery.

Vertex Primary Category: Confined Space & Rescue

Subcategory: Davit & Retrieval Systems

Industry Tags: Confined Space, Technical Rescue, Utilities, Wastewater, Public Works, Industrial Maintenance, Construction, Mining, Manufacturing, Emergency Response

Standards Tags: CE EN 795:2012 Type B, EN 1496:2006 Class B, CEN/TS 16415:2013 Type B, AS/NZS 5532:2013
