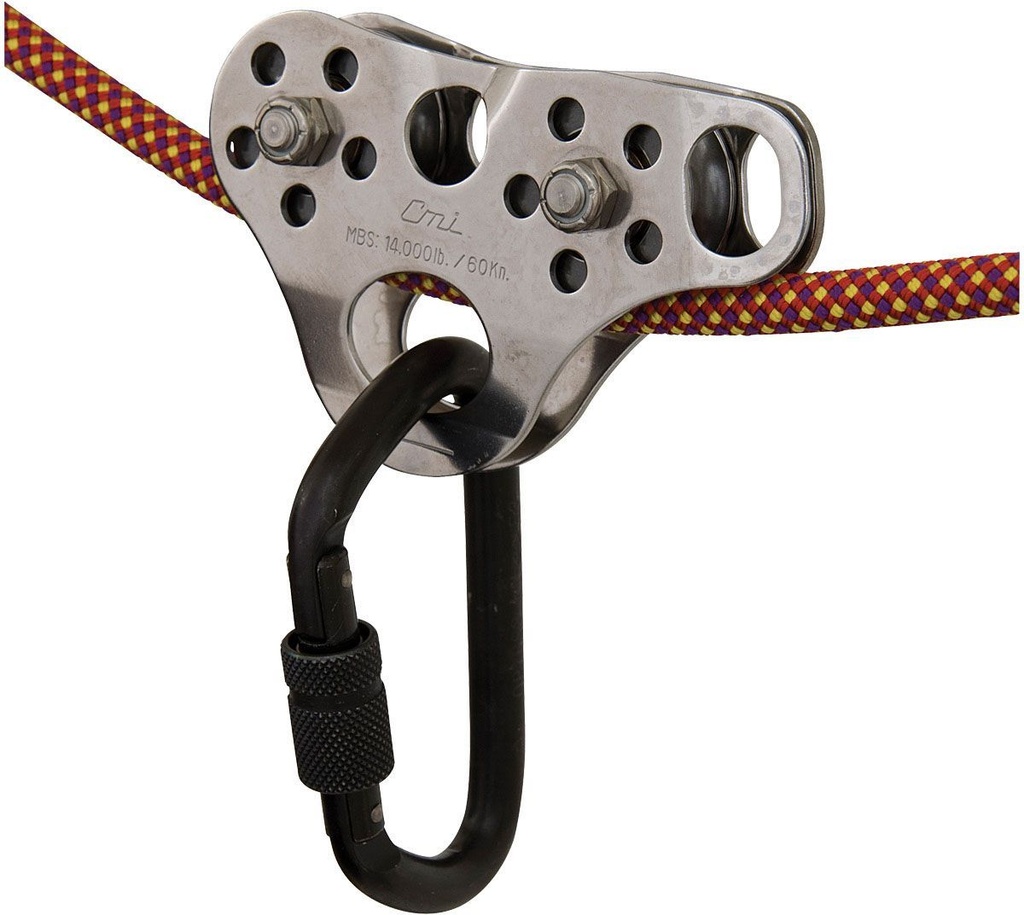

CMI Micro Trolley

The CMI Micro Trolley is a compact, high-strength trolley designed for high-speed travel on rope and cable systems. Built with stainless steel side plates, dual 1.5-inch stainless steel sheaves, stainless steel axles, and ball bearings, it provides exceptional durability and smooth performance for professional rescue, technical rope, and highline applications.

With a minimum breaking strength of 14,000 lb. (62 kN), the Micro Trolley delivers substantial strength in a compact 3 × 5-inch package. The dual-sheave design is rated for speeds up to 90 ft./sec. (approximately 60 mph) and accommodates rope from 1/4 to 1/2 inch in diameter.

Features:

• Dual 1.5-inch stainless steel sheaves
• Stainless steel side plates
• Stainless steel axles
• Ball-bearing operation
• Minimum breaking strength: 14,000 lb. (62 kN)
• Maximum speed: 90 ft./sec. (60 mph)
• Rope capacity: 1/4–1/2 in.
• Dimensions: 3 × 5 in.
• Weight: 0.75 lb.
• Compact, heavy-duty construction

Manufacturer: CMI

Product: Micro Trolley

MBS: 14,000 lb. (62 kN)

Rope Capacity: 1/4–1/2 in.

Weight: 0.75 lb.

Product Type: Dual-Sheave Trolley
