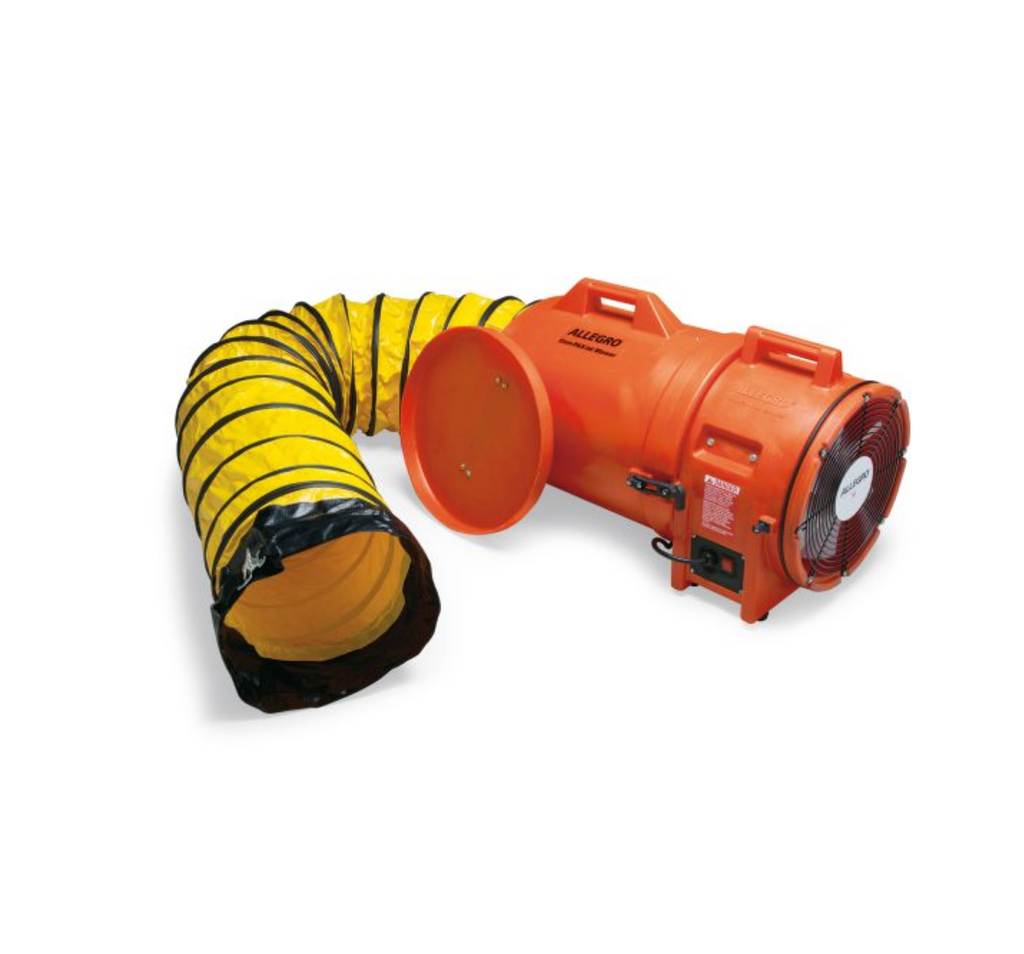

Allegro 12" Axial AC Plastic Blower with Canister and 25' Ducting

The Allegro 12" Axial AC Plastic Blower is a high-output portable ventilation system designed for confined-space entry, utility operations, industrial maintenance, construction, and other applications requiring large-volume forced-air ventilation or extraction. The complete system combines a powerful 12-inch axial blower, storage canister, and 25 feet of flexible ducting for rapid deployment in the field.

The 1 hp blower delivers up to 1,842 CFM of free-air flow. With one 90-degree bend in the duct, airflow is rated at 1,004 CFM, while two 90-degree bends provide 933 CFM. This higher-capacity configuration is well suited for larger confined spaces and utility sites where greater airflow is required.

A tool-free quick-connect system allows the canister to attach to either the inlet side for extraction or the outlet side for ventilation. The 25-foot duct stores inside the canister when not in use, creating a self-contained system that is easier to transport, deploy, and store. Molded carrying handles are incorporated into both the blower and canister housings.

The safety-orange blower and canister are constructed from lightweight polyethylene resistant to corrosion, UV exposure, and many chemicals. The blower incorporates a powder-coated steel grille and a six-blade polypropylene fan. The included ducting is constructed from PVC-coated vinyl/polyester reinforced by a spring-steel wire helix.

Blower Diameter: 12 in.

Maximum Free-Air Flow: 1,842 CFM

Airflow with One 90° Bend: 1,004 CFM

Airflow with Two 90° Bends: 933 CFM

Motor: 1 hp

Power: 115V-230V AC, 50/60 Hz, single phase

Fan: Six-blade polypropylene

Duct Length: 25 ft.

Duct Diameter: 12 in.

Power Cord: 13 ft.

Plug: NEMA 5-15P

Housing: Corrosion-, UV-, and chemical-resistant polyethylene

Color: Safety Orange

Dimensions: 27 x 16 x 17 in.

Weight: 49 lb.

Included: 12" axial AC blower, storage canister, and 25' flexible ducting

Manufacturer Part Number: 9543-25

Standards/Compliance: UL Listed; CSA Certified; CE Certified; CSA C22.2 No. 113
