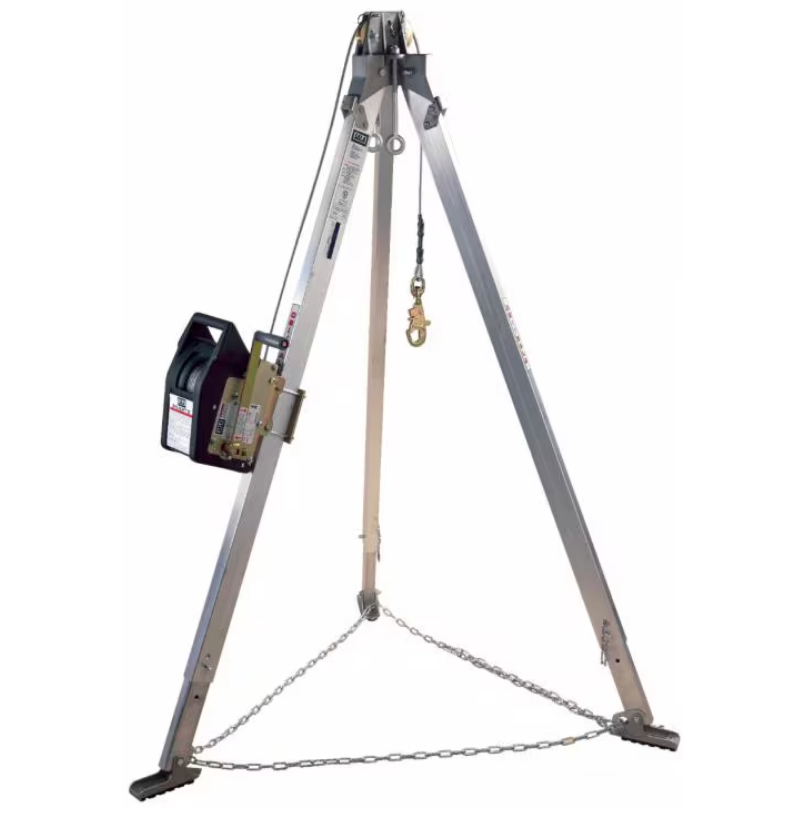

3M DBI-SALA Confined Space Aluminum Tripod with Salalift II Winch, 9', 60' Galvanized Cable 8301081

The 3M DBI-SALA Confined Space Aluminum Tripod with Salalift II Winch is a complete portable retrieval system designed for vertical confined-space entry, rescue, and personnel retrieval. This configuration combines a 9-foot aluminum tripod with a manually operated Salalift II winch and 60 feet of galvanized steel cable for applications including manholes, tanks, utility vaults, vessels, industrial facilities, and other vertical-entry environments.

The aluminum tripod features telescoping, adjustable locking legs, padded feet, and a leg-support chain to provide a stable working platform while remaining portable enough to be set up by a single worker. An integrated pulley system routes the lifeline through the tripod head, while quick-connect mounting brackets allow compatible mechanical devices to be installed efficiently.

The manually operated Salalift II winch provides a 6:1 mechanical advantage for controlled raising and lowering operations. The winch incorporates free-wheel capability, while the overall system includes a 3-way emergency retrieval configuration for rescue operations.

Integrated anchorage points provide additional system versatility. The tripod's eyebolt has a 1,000-pound material-handling capacity, while the mechanical-device mounting bracket is rated for material handling up to 620 pounds. The system can accommodate additional compatible winches and fall-arrest devices when required by the confined-space entry plan.

Tripod Height: 9 ft.

Tripod Construction: Aluminum

Lifeline Length: 60 ft. (18.3 m)

Lifeline Material: Galvanized steel cable

Winch: Manually operated Salalift II

Winch Mechanical Advantage: 6:1

Winch Features: Free-wheel mode

Retrieval: 3-way emergency retrieval system

Tripod Legs: Telescoping, adjustable, and locking

Stabilization: Padded feet and leg-support chain

Pulley: Built-in pulley system with secondary leg-mount capability

Eyebolt Material-Handling Capacity: 1,000 lb. (453 kg)

Mounting-Bracket Material-Handling Capacity: 620 lb. (281 kg)

Country of Origin: USA

Manufacturer Part Number: 8301081

3M ID: 7100327863

Standards/Compliance: For industrial/occupational confined-space and fall-protection applications; 3M states the system meets applicable OSHA and ANSI requirements.

For industrial and occupational use by trained personnel.
